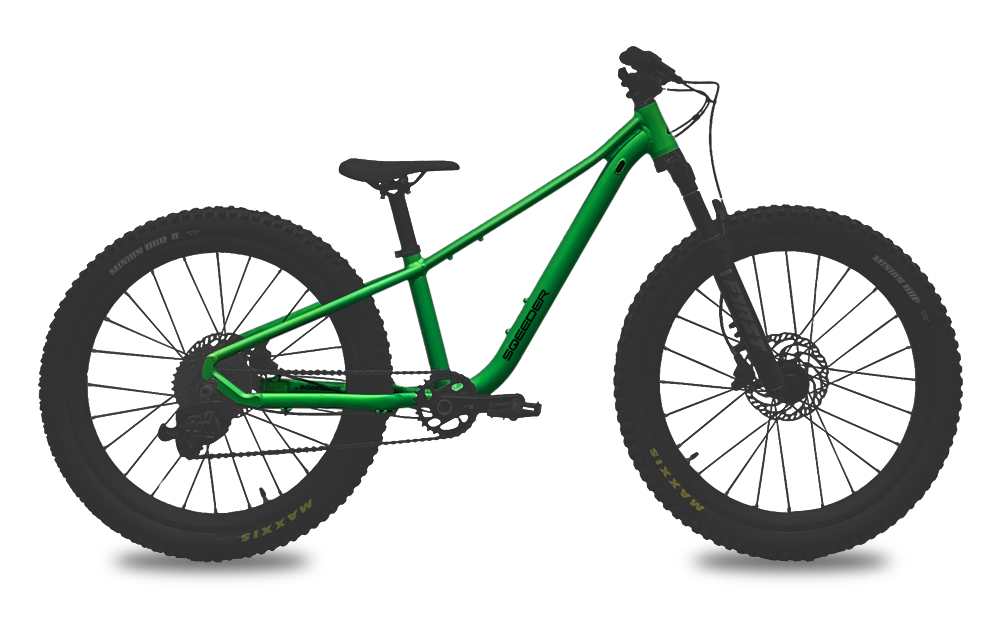

Frame
• Lightweight aluminum
• Flat geometry (more control on the trail)
• Internally routed cables (sporty and cleaner look)
• Standard derailleur hanger Sram UDH
The specially designed frames of our bikes feature a particularly low step-through. This allows children to start with a larger bike. The internally routed components also ensure a sporty and clean look.
- Stack 525mm / Reach 357mm

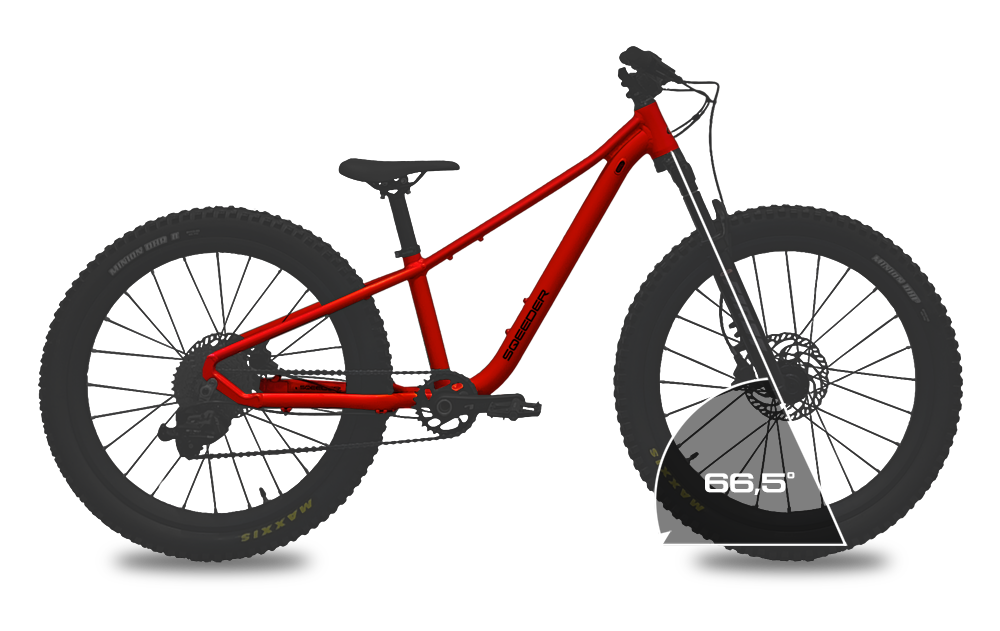

Flat steering angle
At 66.5°, your V5 has a particularly slack steering angle. This ensures a nice smooth ride when driving.

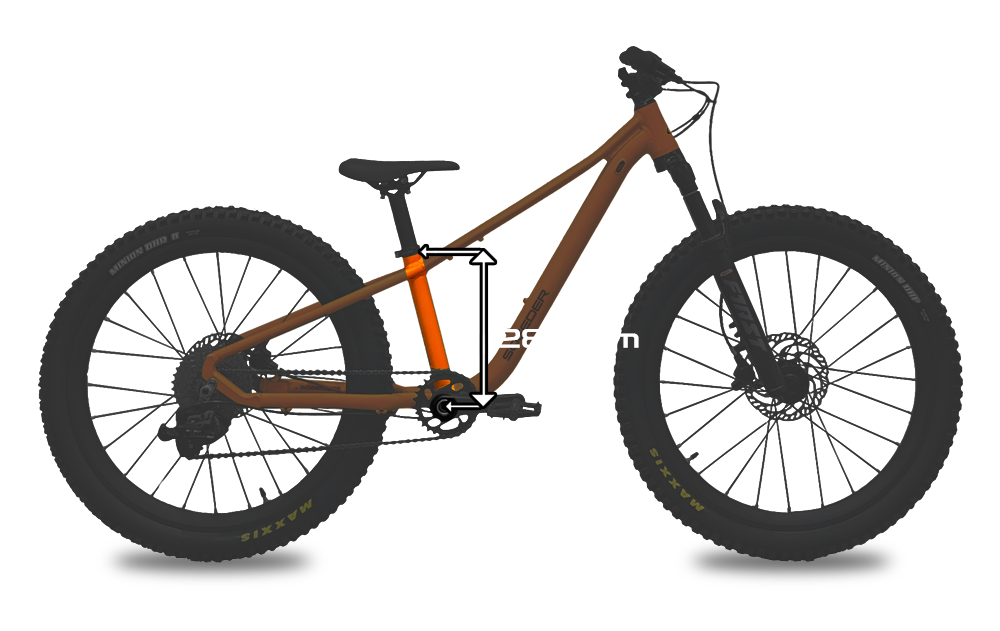

Short seat tube
Thanks to the short 280mm seat tube, your child has more legroom. This ensures that your little ones sit securely on the bike.
A retractable seat post (Dropper Post 100mm) is optionally available in the configurator.
translation
10-speed derailleur from L-Twoo
(short derailleur cage for more ground clearance)
- Chainring with 26 teeth (optional)
- Chainring with 28 teeth (standard)
- 30-tooth chainring (optional)
- Crank arm length 127mm
- Q-factor of 161mm
The gear ratio and the crank arm length are child-friendly and therefore perfectly adapted to the needs of the rider.

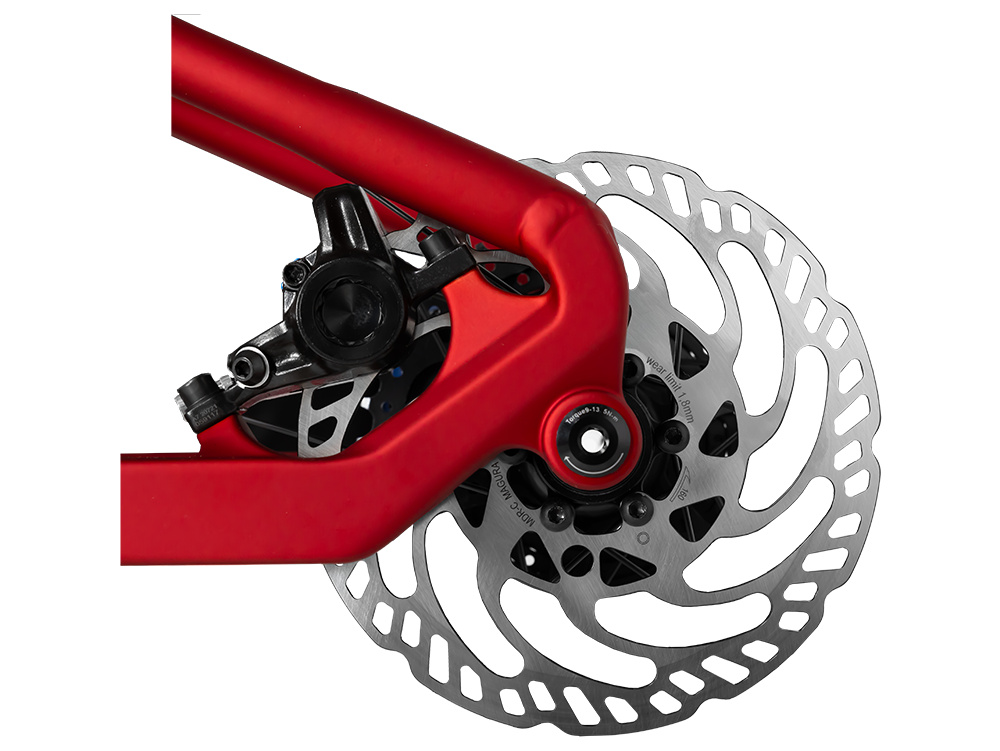

brake
Magura MT SPORT Disc Brake
Hydraulic disc brake:
VR: 160mm brake discs
Rear: 160mm brake discs
The lever width of the Magura MT Sport is adjustable.
suspension fork
The adjustable RST air suspension fork adapts to the rider's weight on any terrain, ensuring controlled ride comfort. Adjustable compression and rebound damping allows for precise adjustments to a wide range of terrain conditions. For a more stable ride, the fork can be optionally locked with the lockout function.
- Air suspension fork (100mm)
- Low weight
- Black magnesium fork tubes with 32mm
- adjustable rebound and compression
- Lockout on the fork bridge
- OCR damping system (Open bath Compression Rebound)
Whether on off-road trails or even on the way home:
With the V5 we guarantee you
maximum driving pleasure!

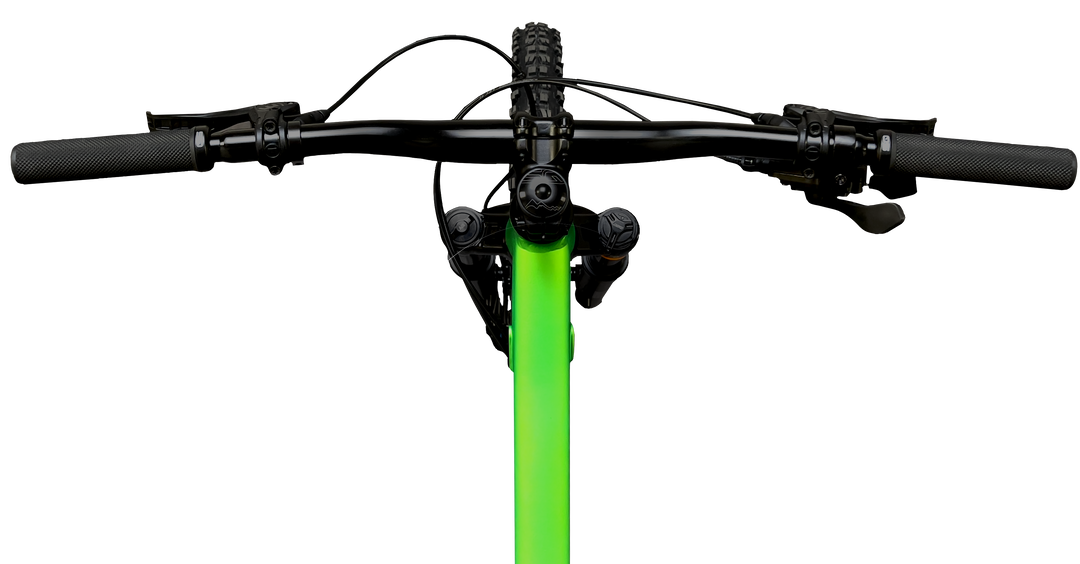

cockpit
The cockpit has been designed so that the handlebars and grips are specially optimized for children:
- Handlebar width 640mm
- Stem length 40mm
- narrow handles (⌀19mm)
- adjustable brake levers
Everything firmly under control on your SQEEDER bike.

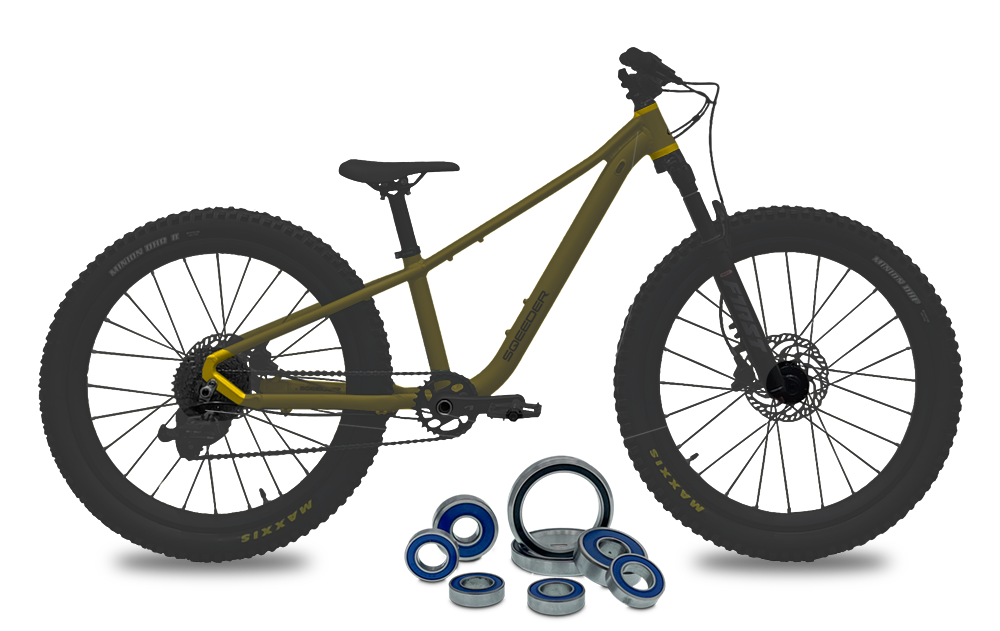

camp
All built-in bearings (bottom bracket, headset, wheel hubs and pedals) are sealed industrial bearings and ensure long and carefree fun - no matter what the weather.
wheelset
The wide rims of our bikes allow you to ride with less air pressure and therefore have more grip off-road.
You can select the right tire for you in the configurator (pictured is the MAXXIS Minion). A crisp freewheel is also included.
Accesories
The following accessories are included in your BikeBox:
• Pedals
• Stand
• Assembly tools
Colors & Stickers
Choose your exact colour! Already have a specific color code in mind? No problem for us either! In addition, you can design your bike with personalized decals and stickers.
SQ V5
Details & Geometry
|
Top tube length |
512mm |
|
seat tube |
280mm |
|
Head tube length |
95mm |
|
Chainstay length |
415mm |
|
Steering angle |
66.5° |
|
Seat angle |
75° |
|
Bottom bracket drop |
40mm |
|
wheelbase |
1025mm |
