YOUR STYLE - YOUR BIKE

V4

Lets you rediscover your world!
CONFIGURE NOW
Detail #1

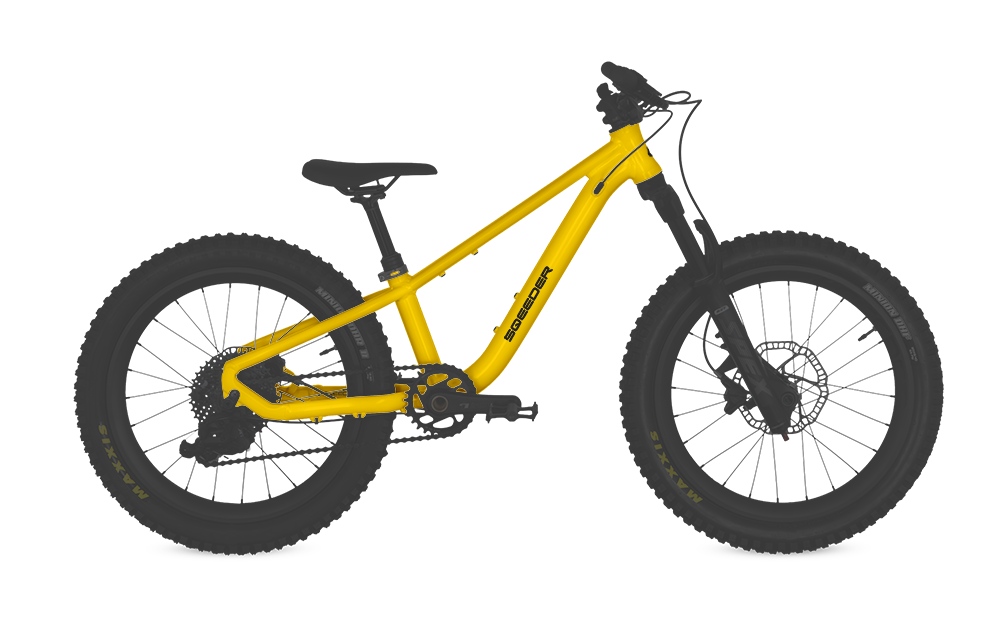

Frame

  • lightweight aluminum
  • flat geometry (more control on the trail)
  • internally routed cables (sporty and cleaner look)

The specially designed frames of our bikes feature a particularly low step-through. This allows children to start with a larger bike size. Internally routed cables also ensure a sporty and clean look.

  • Stack 447mm / Reach 318mm
Detail #2

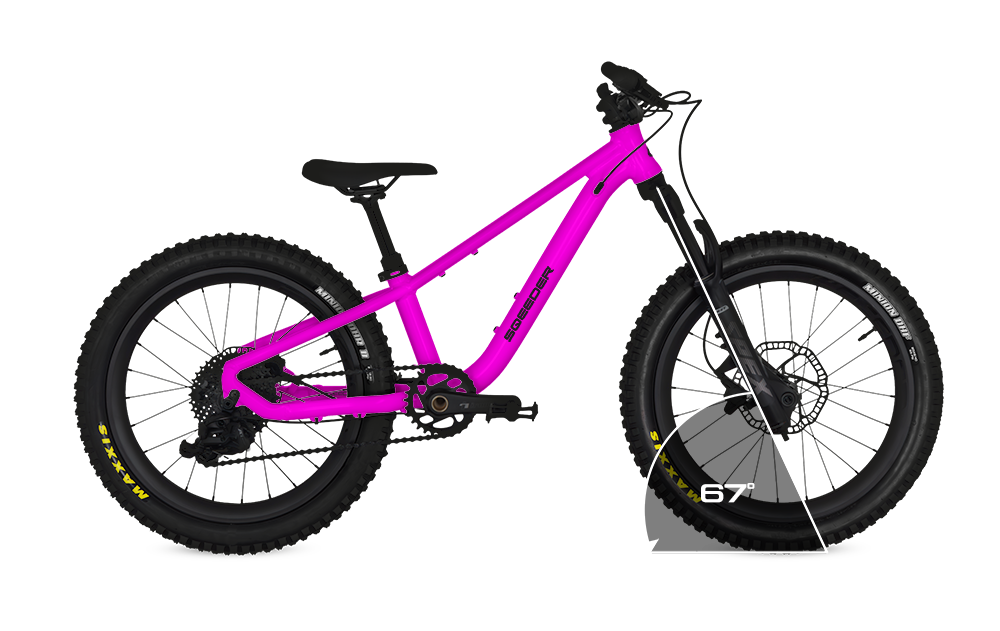

Flat steering angle

At 67°, your V4 has a slack steering angle. This ensures a smooth ride.

Detail #3

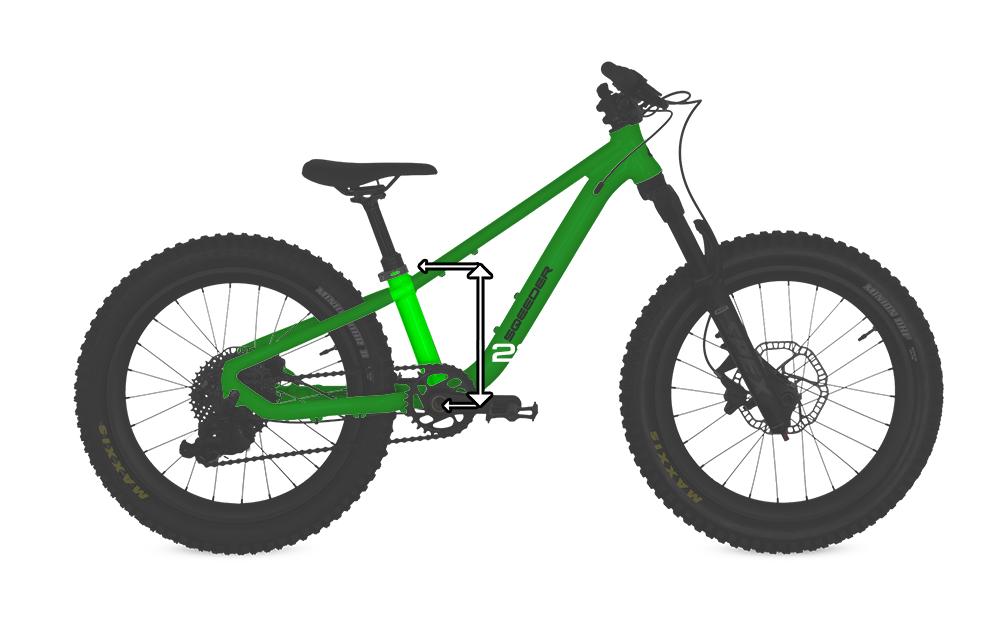

Short seat tube

Thanks to the short 220mm seat tube, your child has more space between the legs (standover height). This ensures that your little ones sit securely on the bike.
A retractable seat post (dropper post 80mm travel) is optionally available in the configurator.

  • Standover height approx. 530mm (depending on tire choice)
Detail #4

drive

10-speed derailleur from L-Twoo
(short derailleur cage for more ground clearance)

  • Chainring with 26 teeth (optional)
  • Chainring with 28 teeth (standard)
  • 30-tooth chainring (optional)
  • Crank arm length 115mm
  • Q-factor of 161mm

The gear ratio and the crank arm length are child-friendly and therefore perfectly adapted to the needs of the rider.

Detail #5

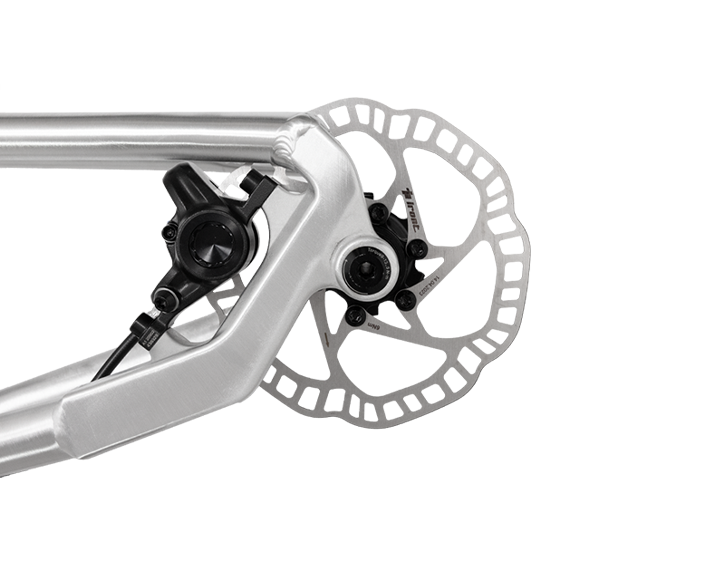

brake

Magura MT SPORT Disc Brake


 Hydraulic disc brake:
VR: 160mm brake discs
Rear: 140mm brake discs

The lever width of the Magura MT Sport is adjustable.

Detail #6

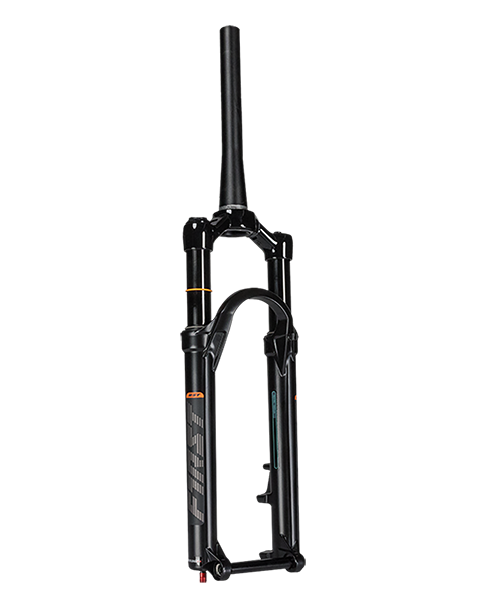

SUSPENSION FORK

The adjustable RST air suspension fork adapts to the rider's weight on any terrain, ensuring controlled ride comfort. Adjustable compression and rebound damping allow precise adjustments to a wide range of terrain conditions. For a more stable ride, the fork can be locked with the optional lockout function.
become.

  • Air suspension fork (80mm)
  • Low weight
  • Black magnesium fork tubes with 32mm
  • adjustable rebound and compression
  • Lockout on the fork bridge
  • OCR damping system (Open bath Compression Rebound)

Whether on off-road trails or even on the way home:
With the V4 we guarantee you
maximum driving pleasure!

*Image similar

Detail #6

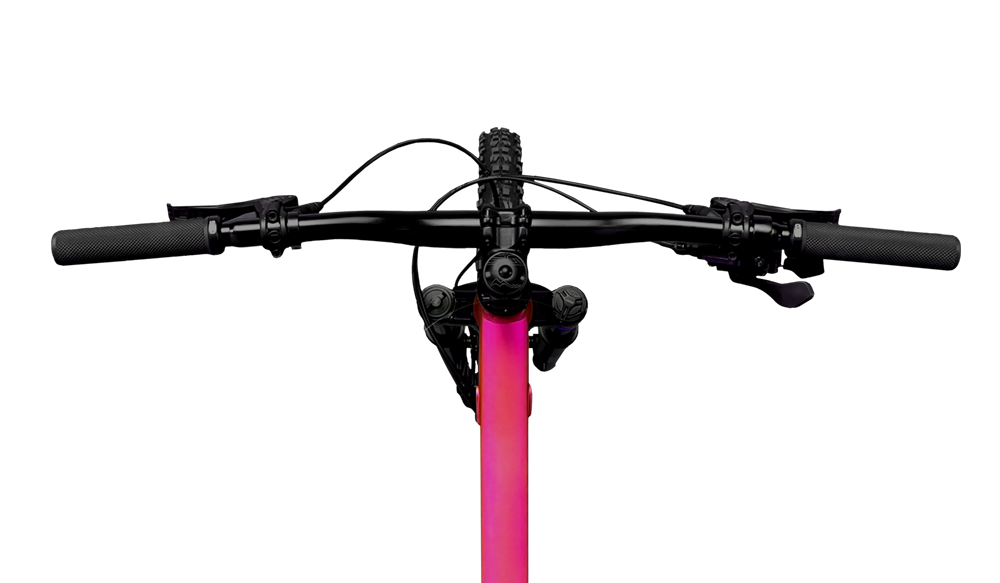

cockpit

The cockpit has been designed so that the handlebars and grips are specially optimized for children:

  • Handlebar width 550mm
  • Stem length 40mm
  • narrow handles
  • adjustable brake levers

Everything firmly under control on your SQEEDER bike.

Detail #7

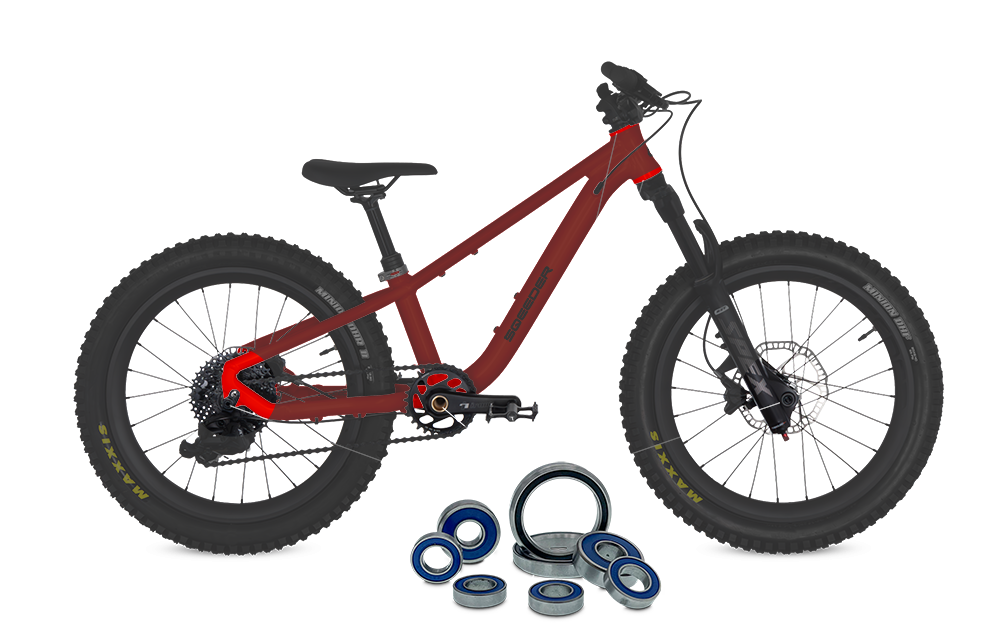

camp

All built-in bearings (bottom bracket, headset, wheel hubs and pedals) are sealed industrial bearings and ensure long and carefree fun - no matter what the weather.

Detail #8

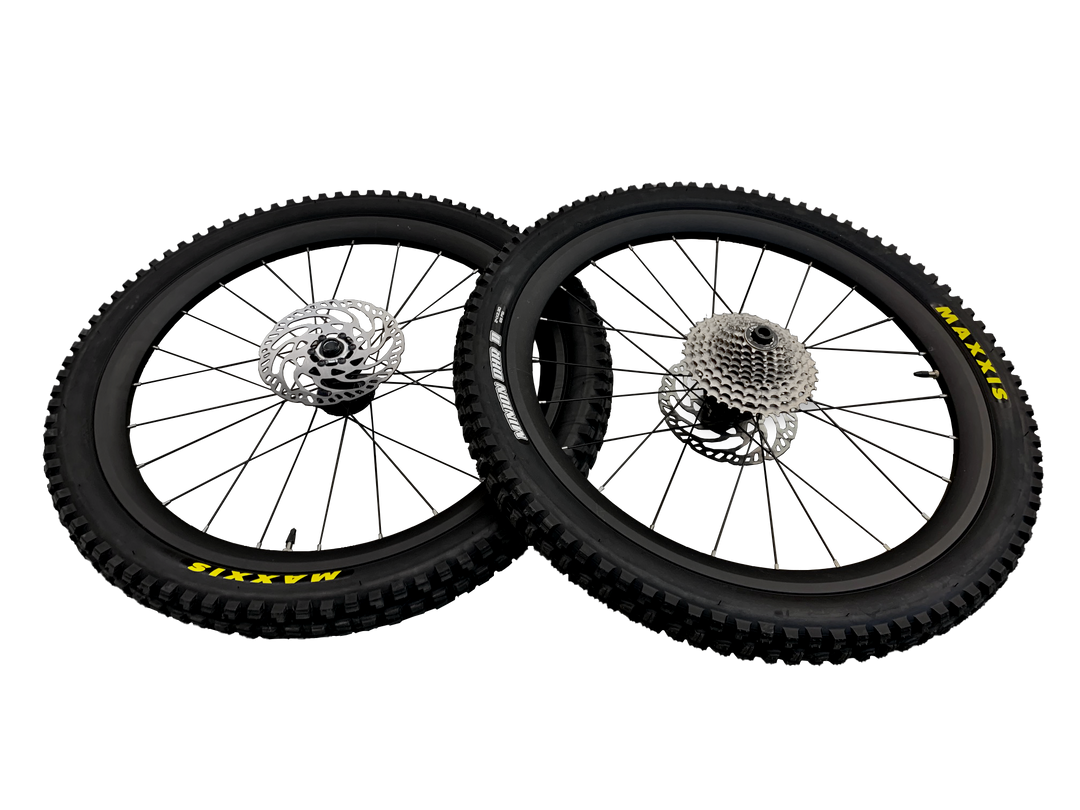

wheelset

The wide rims (30mm) of our bikes allow you to ride with less air pressure and therefore have more grip off-road.

You can select the right tire for you in the configurator. A crisp freewheel is included as a bonus.

  • Trail Look: VeeTire Crown Gem (20x2.25)
  • Trail Skinwall Look: VeeTire Crown Gem Skinwall (20x2.25)
  • Street Look: VeeTire Speedster (20x2.00)
  • Street Skin Look: VeeTire Speedster Skinwall (20x2.00)
  • Trail with coarse tread: Maxxis DHF (20x2.40) & DHR (20x2.30)
Detail #9

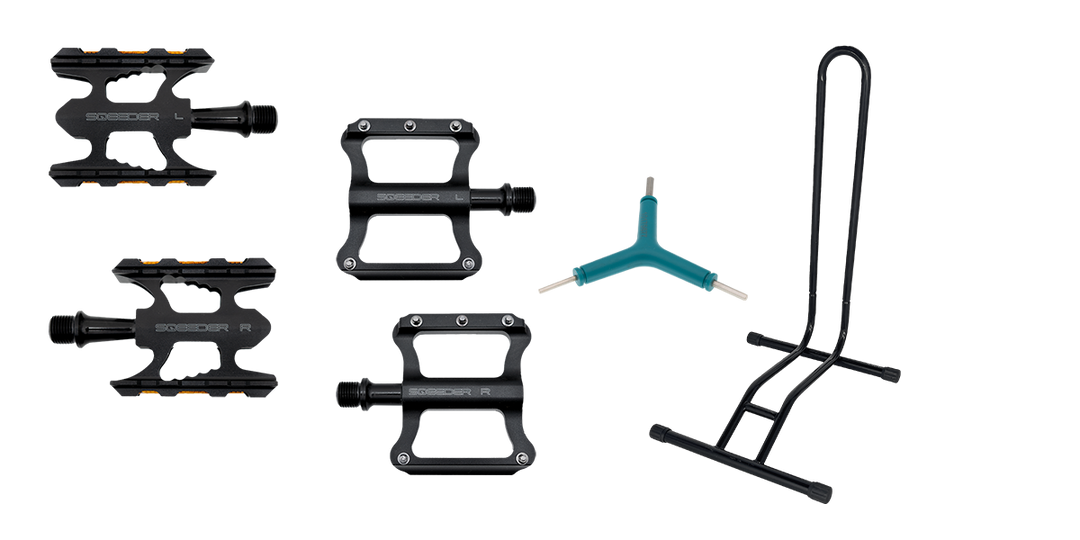

Accesories

The following accessories are included in your BikeBox:

• Pedals
• Stand
• Assembly tools

Detail #10

Colors & Stickers

Choose your exact colour! Already have a specific color code in mind? No problem for us either! In addition, you can design your bike with personalized decals and stickers.

SQ V4

Details
& Geometry

Top tube length

442mm

Seat tube

220mm

Head tube length

90mm

Chain stay length

335mm

Steering angle

67°

Seat angle

73°

Bottom bracket lowering

20mm

wheelbase

865mm
