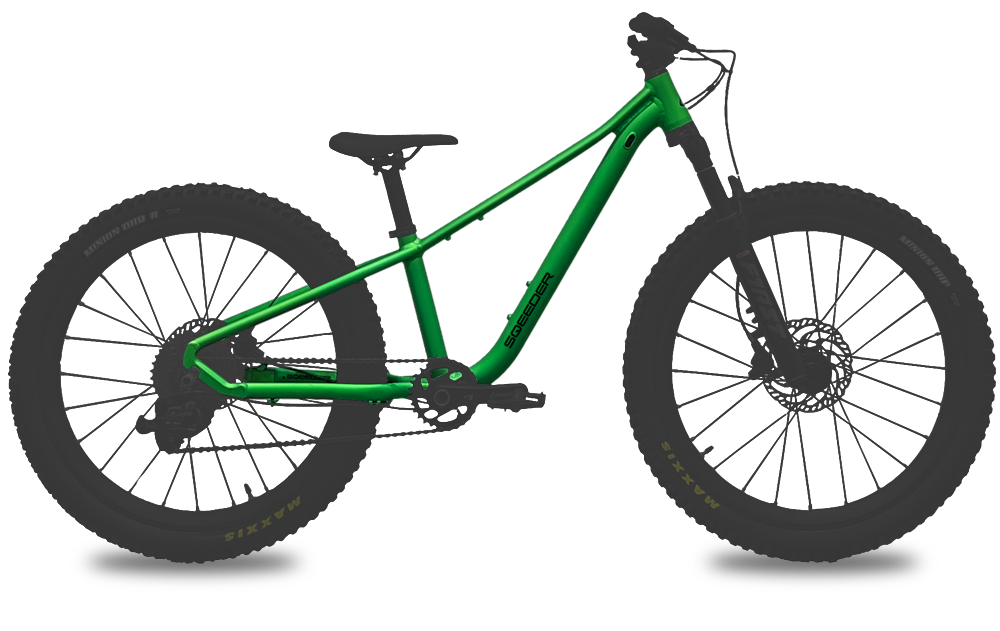

Frame
• lightweight aluminum
• flat geometry (more control on the trail)
• internally routed components (sporty and cleaner look)
• Standard derailleur hanger Sram UDH
The specially designed frames of our bikes feature a particularly low step-through. This allows children to start with a larger bike. The internally routed components also ensure a sporty and clean look.
- Stack 544mm / Reach 377mm

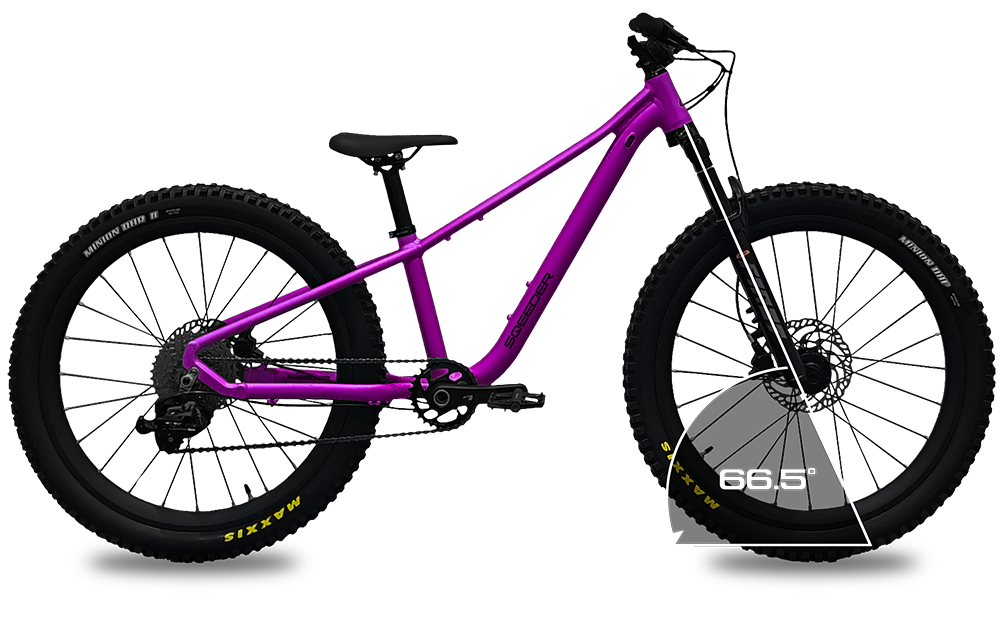

Flat steering angle
At 66.5°, your V6 has a particularly flat steering angle. This ensures a pleasantly smooth ride.

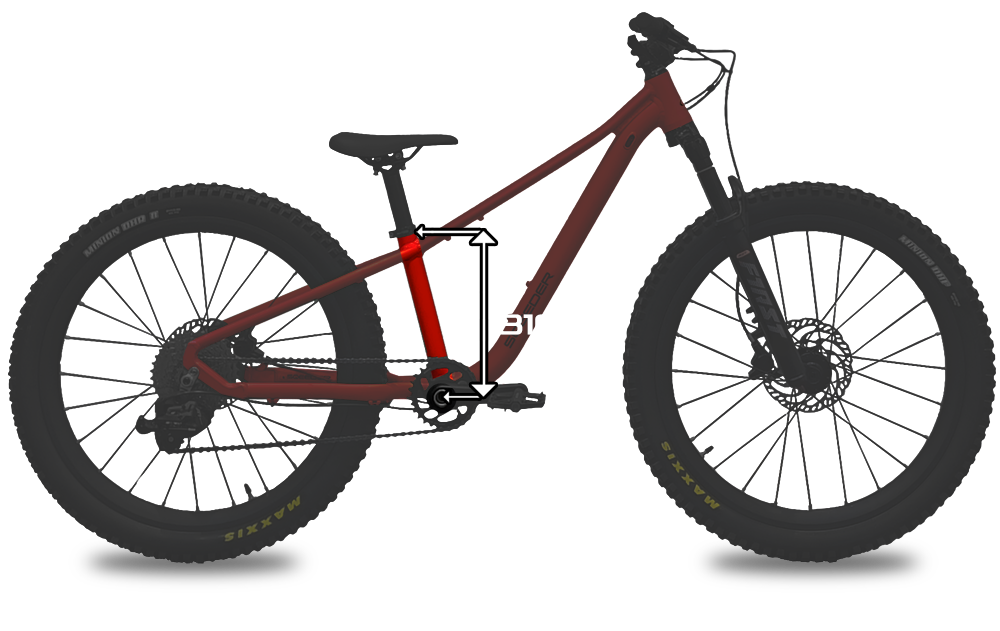

Short seat tube
Thanks to the short 310mm seat tube, your child has more legroom, ensuring they sit securely on the bike.
A dropper post (120mm) is optionally available in the configurator.
drive
10-speed derailleur from L-Twoo
(short derailleur cage for more ground clearance)
- Chainring with 26 teeth (optional)
- Chainring with 28 teeth (optional)
- 30-tooth chainring (standard)
- Crank arm length 140mm
- Q-factor of 161mm
The gear ratio and the crank arm length are child-friendly and therefore perfectly adapted to the needs of the rider.

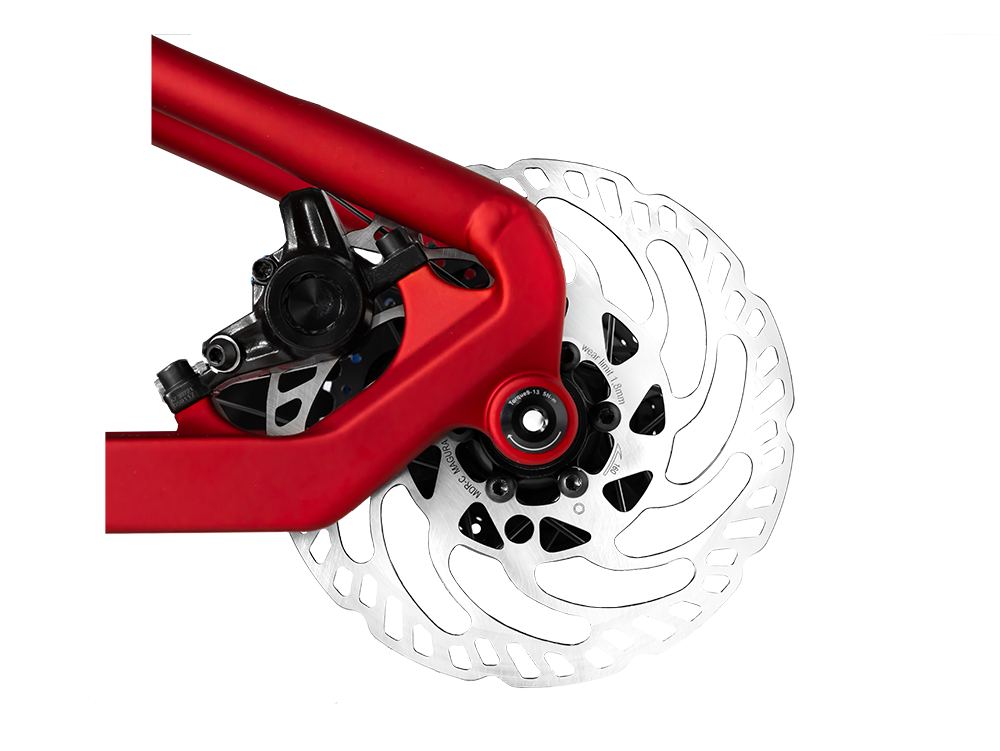

brake
Magura MT SPORT Disc Brake
Hydraulic disc brake:
VR: 180mm brake discs
Rear: 160mm brake discs
The lever width of the Magura MT Sport is adjustable.
SUSPENSION FORK
The adjustable RST air suspension fork adapts to the rider's weight on any terrain, ensuring controlled ride comfort. Adjustable compression and rebound damping allows for precise adjustments to a wide range of terrain conditions. For a more stable ride, the fork can be optionally locked with the lockout function.
- Air suspension fork (100 & 120mm)
- Low weight
- Black magnesium fork tubes with 32mm
- adjustable rebound and compression
- Lockout on the fork bridge
- OCR damping system (Open bath Compression Rebound)
Whether on off-road trails or even on the way home:
With the V6 we guarantee you
maximum driving pleasure!

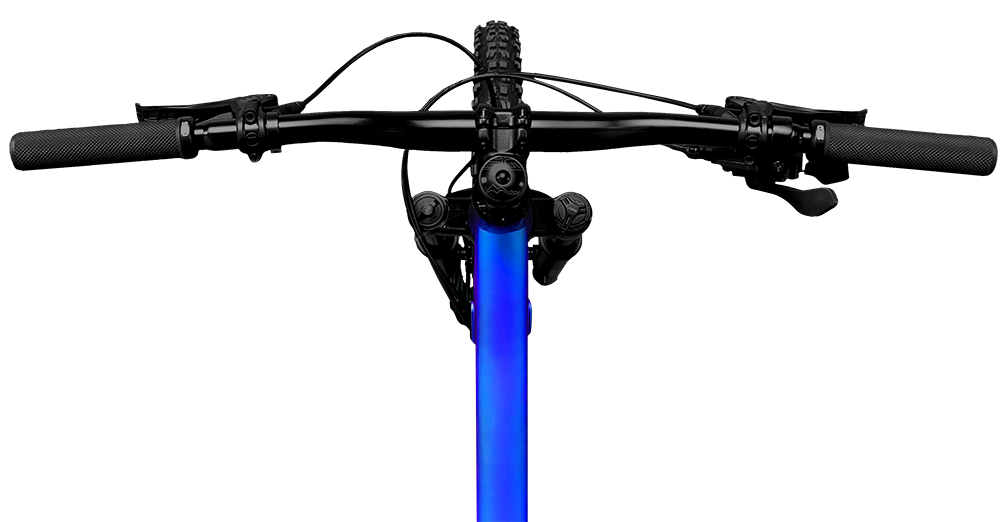

cockpit
The cockpit has been designed so that the handlebars and grips are specially optimized for children:
- Handlebar width 680mm
- Stem length 40mm
- narrow handles (⌀19mm)
- adjustable brake levers
Everything firmly under control on your SQEEDER bike.

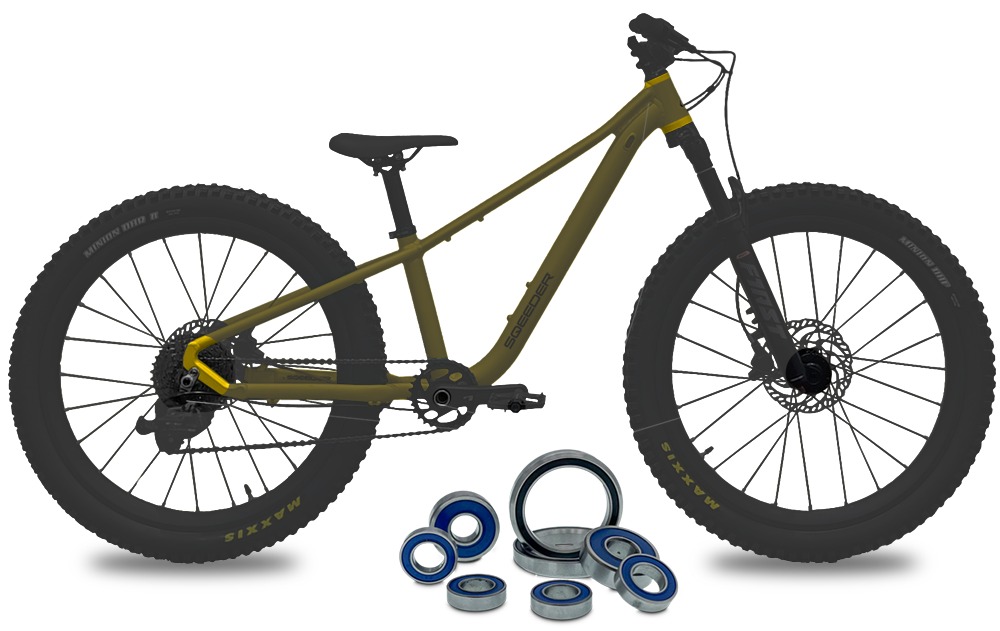

camp
All built-in bearings (bottom bracket, headset, wheel hubs and pedals) are sealed industrial bearings and ensure long and carefree fun - no matter what the weather.
wheelset
You can ride the wide rims of our bikes with less air pressure, which gives you more grip off-road.
In the configurator you can select the right tire for you. There is a crisp freewheel on top.
Accesories
The following accessories are included in your BikeBox:
• Pedals
• Stand
• Assembly tools
Colors & Stickers
Choose your exact colour! Already have a specific color code in mind? No problem for us either! In addition, you can design your bike with personalized decals and stickers.
SQ V6
details & Geometry
|
Top tube length |
533mm |
|
seat tube |
310mm |
|
Head tube length |
95mm |
|
Chainstay length |
430mm |
|
Steering angle |
66.5° |
|
Seat angle |
74° |
|
Bottom bracket drop |
30mm |
|
wheelbase |
1072mm |
